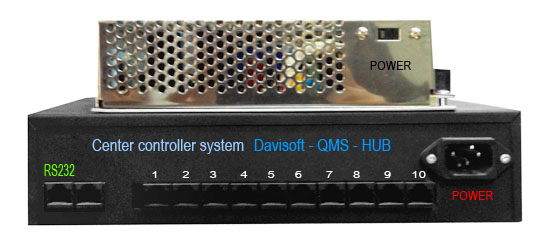

DAVISOFT Central control box + Centralized power supply for Number machine System

– Specifications:
01 software connection port from computer, 11 service control ports, managing up to 256 devices.
Large storage capacity; data is automatically saved and not lost in case of power failure.
High processing speed.
Built-in power supply.
Equipped with ON/OFF switch.
LED indicators for operational status.
Monitoring function for device errors or operational status.
RS485 communication, transmission distance up to 1000m.
Input power: AC 220V; output shared signal lines at 5VDC, 0.01A.
Dimensions: 60 x 210 x 275 mm.
Casing: black steel with electrostatic coating.
Communication standards: RS485, RJ45 connector.
– Note: Most company devices use DC 12V/5V power supplied directly from the control hub to devices in the system. No adapters are plugged directly into 220V power outlets at counters because this is unsafe.
– Advantages:
Centralized management via signal indicator lights and connection status with the computer.
Centralized power supply ensures safe voltage signals (no electric tingling when touching).
At the end of the day, the system automatically consolidates data and transfers it to the Data Center for transaction statistics of each branch and the entire bank system.
